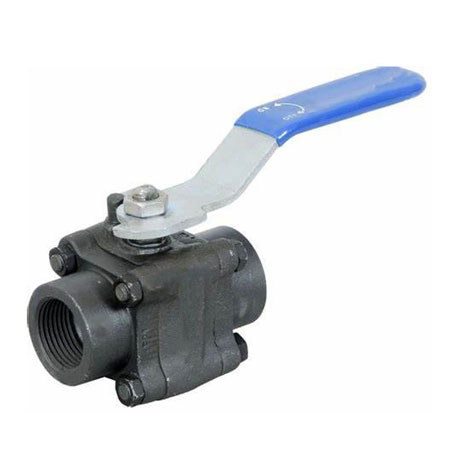

Forged Ball Valve
Forged Ball Valve

Forged Ball Valve

BODY: ASTM A 105 | F 304 | F 304L | F 316 | F 316L | F 11 | F 22

BALL: AISI 304 | AISI 316 | SS 304 | SS 316

STEM: AISI 304 | AISI 316 | SS 304 | SS 316

SEAT & SEAL: PTFE | RPTFE | GFT | TEFLON | VITON | METAL TO METAL

MFG STD: BS 5351

TEST STD: BS 6755

END CONNECTION: SCREWED END TO BSP, NPT (F) | SOCKETWELD END

HYD TEST PRESSURE: BODY: 3000 PSIG (210 KG/CM2)

SEAT: 2000 PSIG (140 KG/CM2)

OPERATION: LEVER

TYPE: THREE PIECE DESIGN

SIZE RANGE: 15 MM TO 50 MM

CLASS: 800#, 1500#, 2500#

Categories: ,

Description

King Valves is a leading manufacturer and supplier of premium Forged Ball Valves, headquartered in Ahmedabad, India. Our forged ball valves are designed for high performance, durability, and leak-proof operation, making them a trusted choice for demanding industrial applications.

Constructed from high-quality forged materials, these valves deliver exceptional strength and resistance to high pressure, extreme temperatures, and corrosive environments. The forging process produces a dense, uniform structure, enhancing valve integrity and service life.

King Valves’ forged ball valves feature precision-engineered balls and seats for smooth operation and tight shut-off, ensuring minimal leakage and reliable control of liquid or gas flow. They are widely used in sectors such as oil & gas, petrochemicals, power plants, marine systems, and chemical processing industries.

Our valves undergo strict quality checks and are manufactured to meet global standards for safety and performance. Available in a range of sizes, pressure ratings, and end connections, we also provide customization options to suit unique project requirements.

With a strong focus on engineering excellence, competitive pricing, and customer satisfaction, King Valves stands as your dependable partner for forged ball valve solutions in India and across the world.

Reviews

There are no reviews yet.

Be the first to review “Forged Ball Valve”

Your email address will not be published. Required fields are marked *

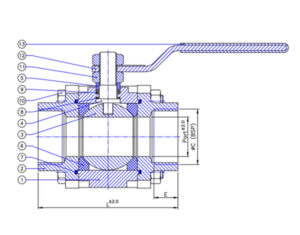

PART NO. PART NAME A 105 F304 F316 F304L F316L
1 BODY ASTM A 105 ASTM A 182 Gr. F304 ASTM A 182 Gr. F316 ASTM A 182 Gr. F304L ASTM A 182 Gr. F316L
2 CONNECTORS ASTM A 105 ASTM A 182 Gr. F304 ASTM A 182 Gr. F316 ASTM A 182 Gr. F304L ASTM A 182 Gr. F316L
3 BALL AISI 304 / AISI 316 / S.S.304 / S.S.316
4 STEM AISI 304 / AISI 316 / S.S.304 / S.S.316
5 GLAND AISI 304 / AISI 316 / S.S.304 / S.S.316
6 BALL SEALS PTFE / RPFE / VITON / EPDM (on Request)
7 BODY SEALS PTFE / RPFE / VITON / EPDM (on Request)
8 STEM PACKING PTFE / RPFE / VITON / EPDM (on Request)
9 GLAND PACKINGS PTFE / RPFE / VITON / EPDM (on Request)
10 BODY BOLTS & NUTS ASTM A 193 GR B7 & A 194 GR 2H
11 GLAND NUT & STEM NUT AISI 410 / AISI 304 / AISI 316
12 HANDLE CS / MS / SS
13 SLEEVE AISI 304 / AISI 316 / S.S.304 / S.S.316

Forged-Ball-Valve-diagram-1-(1)

Class-150

SIZE (IN.) SIZE (MM) A ØC L THDS. BSP / BSPT / NPT F G H
1/2 15 90 13 155 1/2 21.8 29 12.7
3/4 20 95 19 160 3/4 27.3 35 19
1 25 100 25 165 1 34.1 43 22
1.1/4 32 110 32 160 1.1/4 43 54 22
1.1/2 40 120 38 178 1.1/2 49 59 22
2 50 130 50 178 2 61.3 71 23

Class-800

SIZE (IN.) SIZE (MM) A ØC L THDS. BSP / BSPT / NPT F G H
1/2 15 68 12 115 1/2 21.8 29 12.7
3/4 20 79 16 122 3/4 27.3 35 19
1 25 90 22 127 1 34.1 43 22
1.1/4 32 102 27 178 1.1/4 43 54 22
1.1/2 40 117 32 178 1.1/2 49 59 22
2 50 130 37 178 2 61.3 71 23
