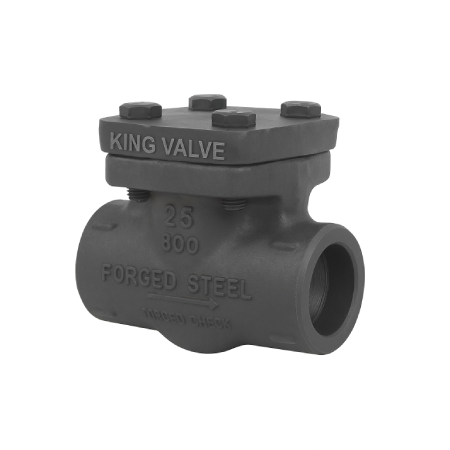

Forged Check Valve

BODY & COVER: A 105 | F 304 | F 316 | F 304L | F 316L | F 11 | F 22

TRIMS: 13 CR | 18 CR 8 NI

MFG STD: BS 5352 | API 602

TEST STD: BS 6755 | API 598

END CONNECTION: SCREWED END | SOCKETWELD END

HYD TEST PRESSURE: BODY: 3000 PSIG (211 KG/CM2)

SEAT: 2000 PSIG (140 KG/CM2)

SIZE RANGE: 15 MM TO 50MM

CLASS: 800# | 1500# | 2500#

TYPE: LIFT UP TYPE

Category:

Description

King Valves is a leading manufacturer and supplier of high-quality Forged Check Valves, proudly based in Ahmedabad, India. Our forged check valves are designed to provide reliable, one-way flow control in demanding industrial applications, ensuring optimal performance and safety.

Built from premium-grade forged materials, these valves offer exceptional strength, durability, and resistance to high pressure and temperature conditions. The robust forging process enhances the valve’s structural integrity, making it suitable for critical operations in industries such as oil & gas, petrochemicals, power generation, and manufacturing.

At King Valves, we focus on precision engineering to deliver valves that prevent backflow efficiently while minimizing wear and tear on the system. Our designs comply with international quality standards, ensuring long service life and low maintenance requirements.

Whether you require forged check valves for high-pressure steam systems or corrosive fluid handling, King Valves offers solutions that combine performance, safety, and cost-effectiveness. We also provide various sizes, end connections, and customization options to meet specific project needs.

With a commitment to quality and customer satisfaction, King Valves stands as your trusted partner for forged check valve requirements in India and beyond.

Reviews

There are no reviews yet.

Be the first to review “Forged Check Valve”

Your email address will not be published. Required fields are marked *

PART NO. PART NAME A 105 F304 F316 F11 F22
1 BODY ASTM A105 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
2 COVER ASTM A105 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
3 DISC AISI 410 AISI 304 AISI 316 AISI 316 AISI 316
4 SEAT RING A182 Gr.F6a. A276-304 A276-316 A276-410 A276-410
5 COVER GASKET S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER
6 COVER STUD & NUT A193 GR B7 A193 GR B8 A193 GR B8 A193 GR B16 A193 GR B16

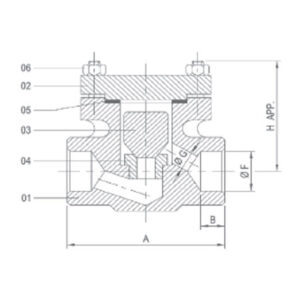

Forged-Check-Valve-Dimension

SIZE 800# (L Face to Face – SCR/SW) 1500# (L Face to Face – SCR/SW) 2500# (L Face to Face – SCR/SW)
15 85 92 104
20 92 104 127
25 104 127 140
40 127 140
50 140
