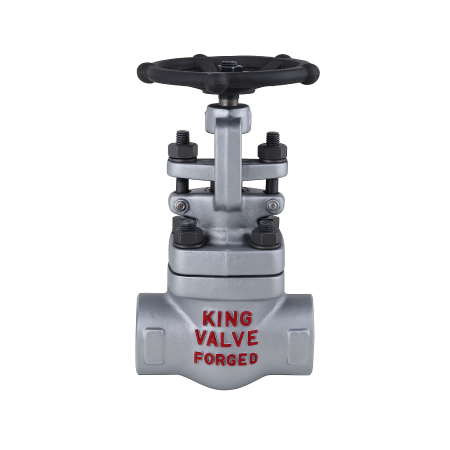

Forged Globe Valve

BODY & BONNET                 : A 105 | F 304 | F 316 | F 304L | F 316L | F 11 | F 22

TRIMS                                   : 13 CR | 18 CR 8 NI

MFG STD                               : API 602 | BS 5352

TEST STD                               : API 598 | BS 6755

END CONNECTION               : SCREWED END | SOCKETWELD END

HYD TEST PRESSURE             : BODY: 3000 PSIG (211 KG/CM2) | SEAT: 2000 PSIG (140 KG/CM2)

SIZE RANGE                           : 15 MM TO 50 MM

OPERATION                           : HANDWHEEL

CLASS                                    : 800# | 1500# | 2500#

Category:

Description

King Valves is a leading manufacturer and supplier of superior-quality Forged Globe Valves, proudly based in Ahmedabad, India. Our forged globe valves are designed to provide precise flow regulation, excellent sealing performance, and durability in demanding industrial environments.

Manufactured from premium-grade forged materials, these valves offer outstanding resistance to high pressures, extreme temperatures, and corrosive media. The forging process enhances the metal’s strength and eliminates structural weaknesses, ensuring a longer operational lifespan and greater safety in service.

King Valves’ forged globe valves are engineered for smooth operation, minimal leakage, and efficient throttling capabilities. Their robust construction and precision-machined components make them ideal for industries such as oil & gas, petrochemicals, power generation, chemical processing, and marine applications.

Each valve undergoes rigorous testing to meet international quality and safety standards. We offer multiple sizes, pressure classes, and end connection options, along with customization to match your specific requirements.

At King Valves, we are committed to delivering products that combine reliability, efficiency, and value. Whether for high-pressure steam systems, industrial fluid control, or specialized process needs, our forged globe valves deliver performance you can trust.

Reviews

There are no reviews yet.

Be the first to review “Forged Globe Valve”

Your email address will not be published. Required fields are marked *

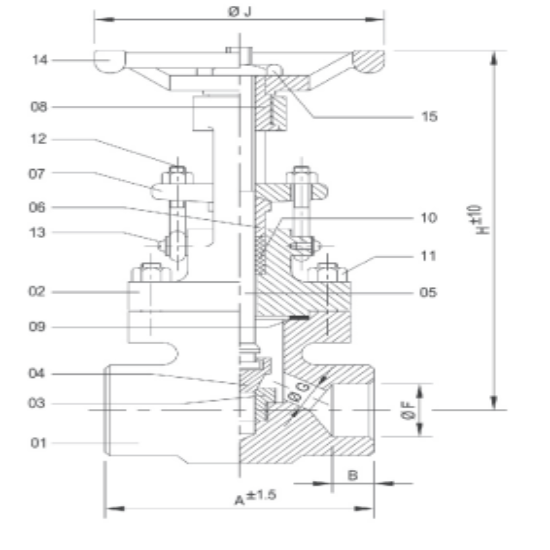

PART NO. PART NAME A 105 F304 F316 F11 F22
1 BODY BONNET ASTM A105 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
2 DISC ASTM A105 A 182 Gr. F304 A 182 Gr. F316 A 182 Gr. F11 A 182 Gr. F22
3 SEAT RING A 182 Gr.F6a A276-304 A276-316 A276-410 A276-410
4 STEM A276-410 A276-304 A276-316 A276-410 A276-410
5 GLAND FLANGE A 216 WCB A351Gr.CF8 A351Gr.CF8M A 216 WCB A 216 WCB
6 BOLTS A193 B7 A193 B8 A193 B8 A193 B16 A193 B16
7 NUTS A193 B7 A193 B8 A193 B8 A193 B16 A193 B16
8 PACKING GRAPHOIL RINGS
9 GASKET S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAFOIL FILLER
10 HAND WHEEL DUCTILE OR MALLEABLE IRON

SIZE 800# (L Face to Face – SCR/SW) 1500# (L Face to Face – SCR/SW) 2500# (L Face to Face – SCR/SW)
15 85 92 104
20 92 104 127
25 104 127 140
40 127 140
50 140
