pneumatic knife edge gate valve

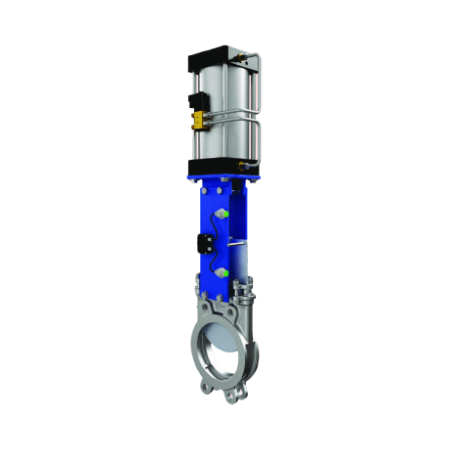

Pneumatic Knife Edge Gate Valve

Sizes:
DN 50 / 2” to DN 1000 / 40”

Standard flange connection:

  • DIN PN 10 and ANSI B16.5 (class 150) and Table “E” & “D”

  • Other Flanges Connections Available on Request

  • DIN PN6 / DIN PN16 / DIN PN25 / ANSI125

Category:

Description

The King Valves is a manufacturer and exporter of Pneumatic Knife Edge Gate Valves in Ahmedabad, India. The Design of The Body And Seat Assures Non-Clogging Shut Off On Suspended Solids in Industries Such As:

  • Pulp and Paper

  • Wastewater Treatment Plants

  • Chemical Plants

  • Food And Beverage

  • Bulk Handling

  • Mining

Size Pressure
DN 2” / 50mm to DN 10” / 250 mm 150 psi / 10 bar
DN 12” / 300mm to DN 16” / 400 mm 90 psi / 6 bar
DN 18” / 450mm 75 psi / 5 bar
DN 20” / 500mm to DN 24” / 600 mm 60 psi / 4 bar
DN 28” / 700mm to DN 40” / 1000 mm 30 psi / 2 bar



Reviews

There are no reviews yet.

Be the first to review “Pneumatic Knife Edge Gate Valve”

Your email address will not be published. Required fields are marked *

PART MATERIAL OF CONSTRUCTION
01 – BODY WCB, CF8, CF8M / OTHER ON REQUEST
02 – GATE AISI 304 / AISI 316 / OTHER ON REQUEST
03 – SEAT METAL TO METAL / SOFT SEAT
04 – PACKING PTFE IMPREG. SYNTH. FIBRE
05 – GLAND FOLLOWER CF8, CF8M, WCB
06 – SOLENOID VALVE 5/2 & 5/3 WAY – SINGLE OR DOUBLE COIL
07 – LIMIT SWITCH MECHANICAL, PROXIMITY
08 – YOKE MILD STEEL
09 – SEAT RING AISI 304 / AISI 316 / Integral
10 – OPERATION PNEUMATIC OPERATED
11 – FASTENERS HIGH-TENSILE (ZINC COATED)
12 – CYLINDER TYPE DOUBLE ACTING
13 – CYLINDER BERRAL ALUMINUM
