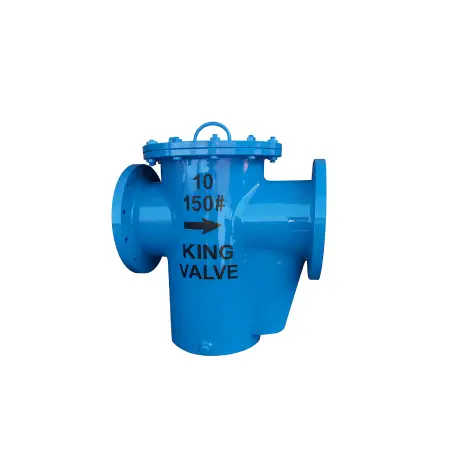

POT Type Strainer

  • Manufacturing Std: ASME B 16.34
  • Face to Face: As Per ANSI B 16.10
  • End Connection: Flanged ends Drill as per ANSI B 16.5 150# / 300#
  • Shell wall Thickness: As Per Pipe Standard
Category:

Description

When it comes to selecting the finest Pot Type Strainer, King Valves stands out as a top choice. Renowned for our advanced design and superior performance, King’s Pot Type Strainer offers longevity and reliability. Ideal for high-pressure and temperature environments, our valves are trusted for critical applications like hydrocarbons, cryogenic services, and more.

With a focus on durability and versatility, our Pot Type Strainer excel in various industries. Plus, our commitment to exceptional service ensures a satisfying experience for our customers. Once you experience the quality and efficiency of King Pot Type Strainer, you’ll see why we’re the preferred choice.

Customers seeking reliable Pot Type Strainer, backed by excellent service would likely find King Valves to be a trusted partner. It’s reassuring to know that once you’ve experienced their products, you may not feel the need to look elsewhere for Pot Type Strainer solutions.

POT Type Strainer

A pot type strainer is a broader term that can refer to different designs of strainers based on the orientation and configuration of their ports. The ports are the entry and exit points for the fluid, and their design affects the strainer’s application and performance.

Reviews

There are no reviews yet.

Be the first to review “POT Type Strainer”

Your email address will not be published. Required fields are marked *

No. Description Material Qty
1 Body M.S.(IS:3589) /IS 2062 / IS 3589/ SA-312 TP316 1
2 Top Cover M.S.(IS:2062) / IS:2062 / SA-240 GR316 1
3 Body Cover M.S.(IS:2062) / IS:2062 / SA-240 GR316 1
4 Inlet Flange M.S.(IS:2062) / IS:2062 /SA-240 GR316
5 Out Let Flange M.S.(IS:2062) / IS:2062 / SA-240 GR316 1
6 Screen S.S.304/316 (Mesh-40) 1
7 Cover Bolt & Nut Carbon Steel / ASTM A 193 Gr.B7 /2H / S.S –
8 Gasket NItrile /SWG Graphite Filler / PTFE 1
9 Drain Plug & Vent Plug ASTM A 105 / S.S 1
10 Lifting Handle Carbon Steel / S.S 1



Sr.No. Size A B ØC ØD ØM N PCD
1 25mm 250 11 51 108 16 4 79
2 40mm 310 14 73 127 16 4 98.5
3 50mm 310 16 92 152 19 4 120.5
4 65mm 310 17.5 105 178 19 4 140
5 80mm 350 19 127 190.5 19 4 152.4
6 100mm 380 24 157 229 19 8 190.5
7 125mm 450 24 186 254 22 8 215.9
8 150mm 450 25 216 279 22 8 241
9 200mm 515 28.5 270 343 22 8 298.4
10 250mm 600 30 324 406 25 12 362
11 300mm 700 32 381 483 25 12 432
12 350mm 800 35 413 533.4 28.6 12 476.2
13 400mm 900 36.5 470 597 28.6 16 539.7
14 450mm 1000 40 533 635 31.7 16 577.8
15 500mm 1100 43 584 698.5 31.7 20 635

(Dimensions Above 500 Mm & 300# Available on Request)
